Optimise Experimental Design Layout Using Simulated Annealing

Optimises the spatial layout of experimental designs using simulated annealing to minimise treatment adjacency and maintain treatment balance across spatial factors. Works with regular or irregular spatial designs.

Usage

speed(
  data,
  swap,
  swap_within = "1",
  spatial_factors = ~row + col,
  grid_factors = list(dim1 = "row", dim2 = "col"),
  iterations = 10000,
  early_stop_iterations = 2000,
  obj_function = objective_function,
  swap_all = FALSE,
  linked_cols = NULL,
  optimise = NULL,
  optimise_params = optim_params(),
  quiet = FALSE,
  seed = NULL,
  ...
)

Arguments

data

A data frame containing the experimental design with spatial coordinates

swap

A column name of the items to be swapped (e.g., treatment, variety, genotype, etc). For hierarchical designs, provide a named list where each name corresponds to a hierarchy level (e.g., list(wp = "wholeplot_treatment", sp = "subplot_treatment")). See details for more information.

swap_within

A string specifying the variable that defines a boundary within which to swap treatments. Specify "1" or "none" for no boundary (default: "1"). Other examples might be "block" or "replicate" or even "site". For hierarchical designs, provide a named list with names matching swap to optimise a hierarchical design such as a split-plot. See details for more information.

spatial_factors

A one-sided formula specifying spatial factors to consider for balance (default: ~row + col).

grid_factors

A named list specifying grid factors to construct a matrix for calculating adjacency score, dim1 for row and dim2 for column. (default: list(dim1 = "row", dim2 = "col")). The axes apply to the whole design, so unlike swap they cannot be set per level of a hierarchical design.

An optional third element, by, names a column that groups plots into separate grids - a multi-environment trial, where each site reuses the same row/col numbering. Each grid is then scored on its own and the adjacency counts summed, so no adjacency is counted between plots at different sites, e.g. list(dim1 = "row", dim2 = "col", by = "site"). Without it, a design whose sites share coordinates is refused rather than silently pooled.

iterations

Maximum number of iterations for the simulated annealing algorithm (default: 10000). For hierarchical designs, can be a named list with names matching swap.

early_stop_iterations

Number of iterations without improvement before early stopping (default: 2000). For hierarchical designs, can be a named list with names matching swap. Optimisation also stops as soon as a level reaches the lowest score its layout allows, which is only applicable for the default objective_function(); see summary().

obj_function

Objective function used to calculate score (lower is better) (default: objective_function()). For hierarchical designs, can be a named list with names matching swap.

swap_all

Logical; Whether to swap all matching items or a single item at a time (default: FALSE)

linked_cols

Character vector of column names that travel with the swap column, for example a variety_name label belonging to a numeric variety code (default: NULL). For hierarchical designs, can be a named list with names matching swap. See details for more information.

optimise

A list of named arguments describing optimising parameters; see more in example.

optimise_params

Parameters used to control the behaviour of simulated annealing algorithm. See optim_params() for more details.

quiet

Logical; if TRUE, suppresses progress messages (default: FALSE)

seed

A numeric value for random seed. If provided, it ensures reproducibility of results (default: NULL).

...

Other arguments passed through to objective functions.

Value

A list containing:

design_df - Data frame of optimised design
score - Final optimisation score
scores - Vector of scores across iterations (for simple designs) or named list of score vectors (for hierarchical designs)
temperatures - Vector of temperatures across iterations
iterations_run - Total number of iterations performed
stopped_early - Logical indicating if optimisation stopped early (for simple designs) or named logical vector (for hierarchical designs)
treatments - Vector of unique treatments (for simple designs) or named list of treatment vectors (for hierarchical designs)
seed - Random seed used for reproducibility of the design. If not set in the function, the seed is set to the third element of .Random.seed, or drawn at random if the RNG has not been used yet.
metadata - A list describing how the design was produced: the captured call, the ordered levels, the resolved row_column / col_column names, and a per_level list recording each level's swap variable, spatial factors, adjacency/balance weights, requested iterations, starting temperature, cooling rate, objective function, achieved score and the stop_reason that ended the level. Used by summary() to recompute per-level evaluation metrics.

Details

This function provides a very general interface for producing experimental designs of different types. For hierarchical designs such as split-plots, strip plots, split-split plots and similar nested structures, the key arguments (swap, swap_within, iterations, early_stop_iterations and obj_function) can be provided as named lists where each name corresponds to a level in the hierarchy (e.g., "wholeplot", "subplot"). When these arguments are provided as named lists with matching names, the optimisation is applied sequentially at each hierarchical level, starting with the first level and progressing through the hierarchy. This allows for different optimisation parameters and objective functions to be applied at different levels of the design structure. For simple (non-hierarchical) designs, these arguments can be provided as single values. For more examples and detailed usage, see the package vignettes.

linked_cols names columns that describe the treatment rather than the plot, so that a value paired with a treatment stays paired with it wherever the search moves it. They take no part in scoring, and are returned in their input class and position. Columns used as swap_within, spatial factors or grid factors cannot be linked, since they describe where a plot is rather than what is on it.

A named list links different columns at different levels, e.g. list(wp = "wholeplot_label", sp = "subplot_label"). A bare character vector applies to every level, which in a hierarchical design is only valid when every level swaps the same column, as in a multi-environment trial - a column can only travel with one swap column.

A later level's swap column may be linked to an earlier one, which carries a child treatment along when its parent moves: linking sp_trt at the whole-plot level of a split-plot moves each sub-plot treatment with its whole-plot treatment, before the sub-plot level then optimises it. The carrying level must come first, or it would undo the child level's work.

On a level with swap_all = TRUE whole treatment groups move at once, so a linked column with more than one value per treatment travels with its treatment group rather than being paired plot for plot.

Examples

# Create a simple design with 3 replicates of 4 treatments in a 4x3 layout
df <- data.frame(
  row = rep(1:4, times = 5),
  col = rep(1:5, each = 4),
  treatment = rep(LETTERS[1:4], 5)
)

# Optimise the design
result <- speed(df, swap = "treatment", seed = 42)
#> row and col are used as row and column, respectively.
#> Optimising level: single treatment within whole design
#> Optimal score reached at iteration 726 for level single treatment within whole design

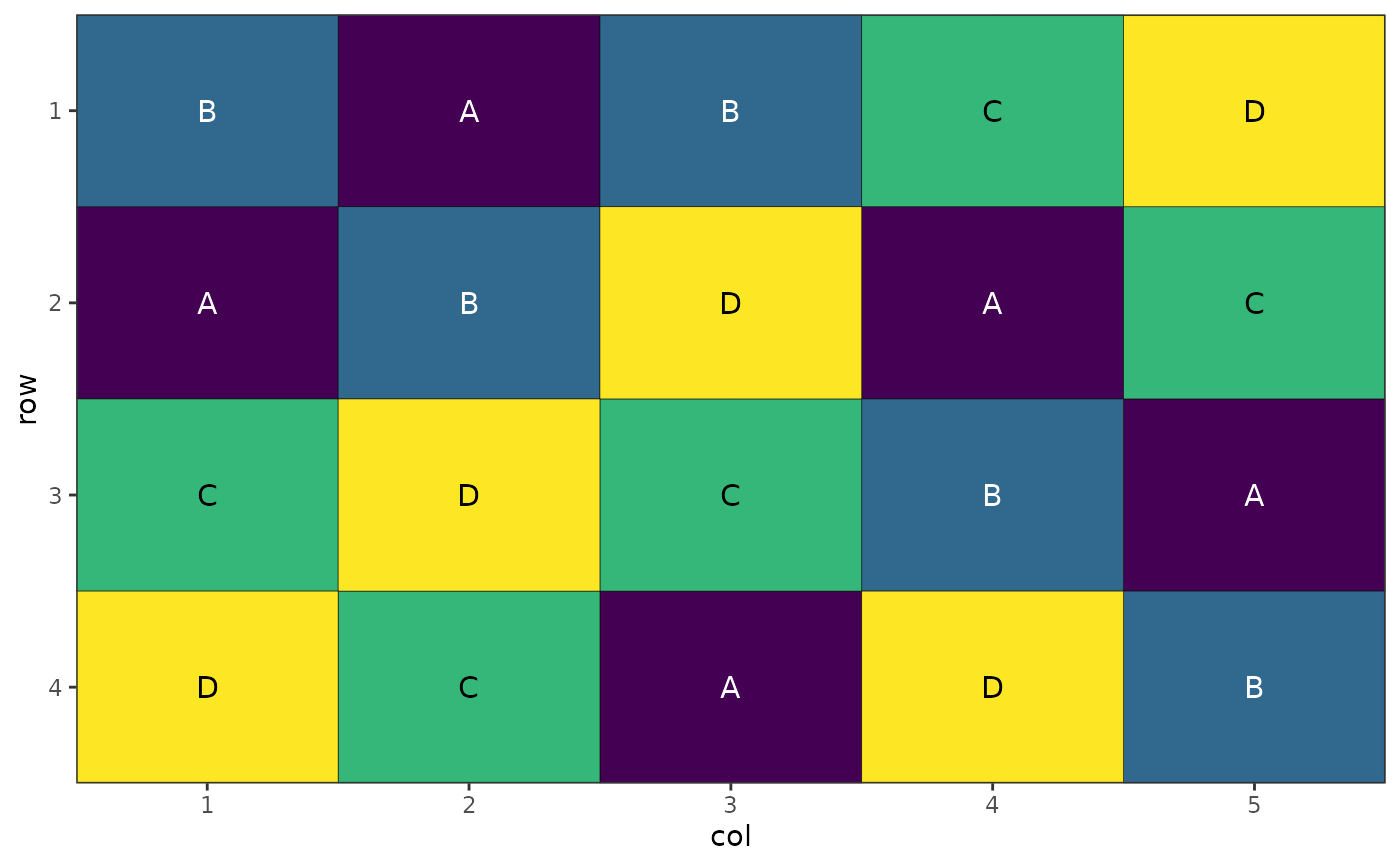

autoplot(result)


# Keep a label column travelling with its treatment
df$treatment_name <- paste("Variety", df$treatment)
result <- speed(df, swap = "treatment", linked_cols = "treatment_name", seed = 42)
#> row and col are used as row and column, respectively.
#> Optimising level: single treatment within whole design
#> Optimal score reached at iteration 726 for level single treatment within whole design
head(result$design_df)
#>   row col treatment treatment_name
#> 1   1   1         B      Variety B
#> 2   1   2         A      Variety A
#> 3   1   3         B      Variety B
#> 4   1   4         C      Variety C
#> 5   1   5         D      Variety D
#> 6   2   1         A      Variety A

# Hierarchical split-plot design
df_split <- data.frame(
  row = rep(1:12, each = 4),
  col = rep(1:4, times = 12),
  block = rep(1:4, each = 12),
  wholeplot = rep(1:12, each = 4),
  wholeplot_treatment = rep(rep(LETTERS[1:3], each = 4), times = 4),
  subplot_treatment = rep(letters[1:4], 12)
)

result <- speed(df_split,
                swap = list(wp = "wholeplot_treatment",
                            sp = "subplot_treatment"),
                swap_within = list(wp = "block", sp = "wholeplot"),
                swap_all = TRUE,
                seed = 42)
#> row and col are used as row and column, respectively.
#> Optimising level: wp
#> Level: wp Iteration: 1000 Score: 100 Best: 100 Since Improvement: 1000
#> Level: wp Iteration: 2000 Score: 100 Best: 100 Since Improvement: 2000
#> Early stopping at iteration 2000 for level wp
#> Optimising level: sp
#> Optimal score reached at iteration 570 for level sp

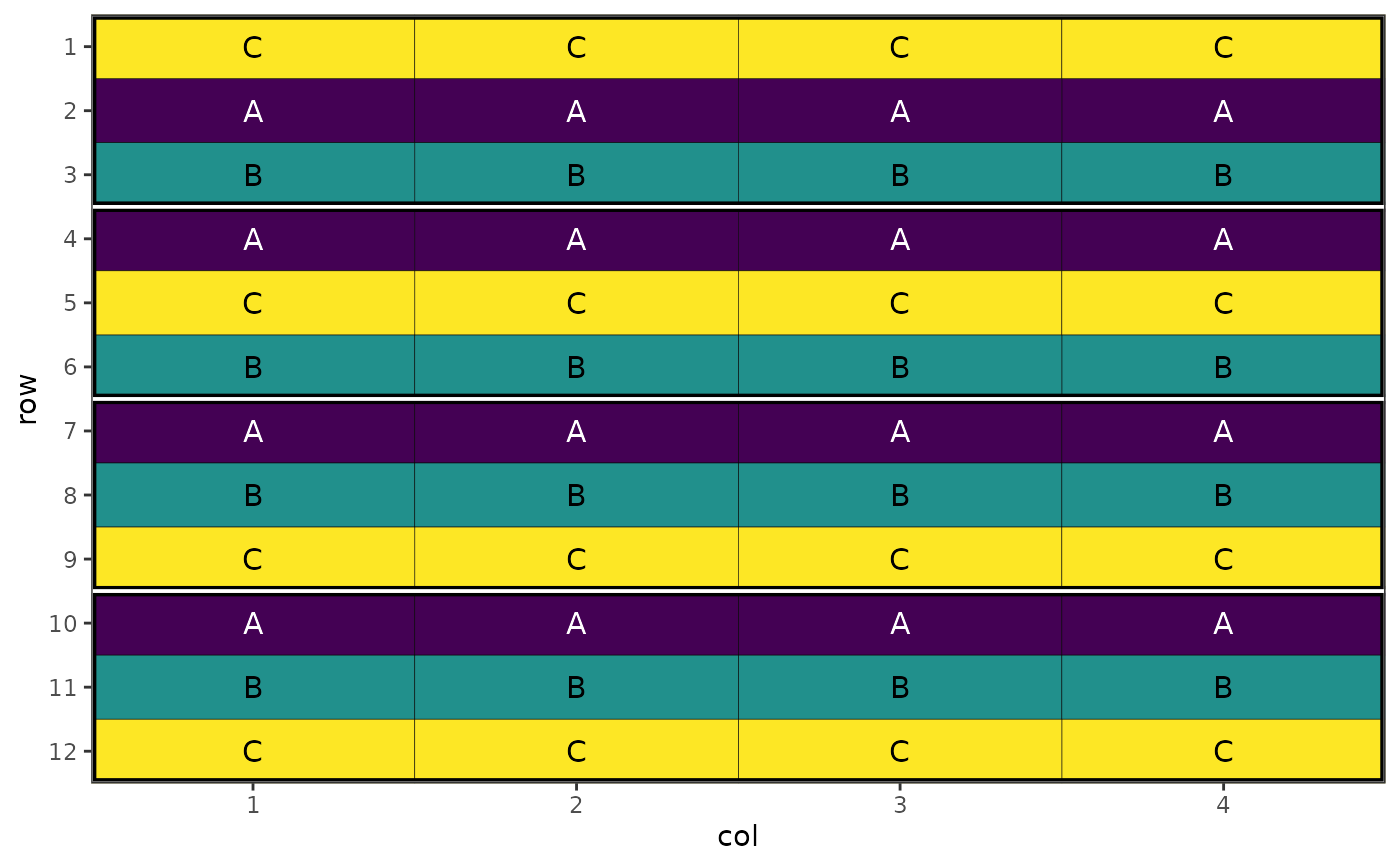

# Plot wholeplot allocations within blocks
autoplot(result, treatments = "wholeplot_treatment")

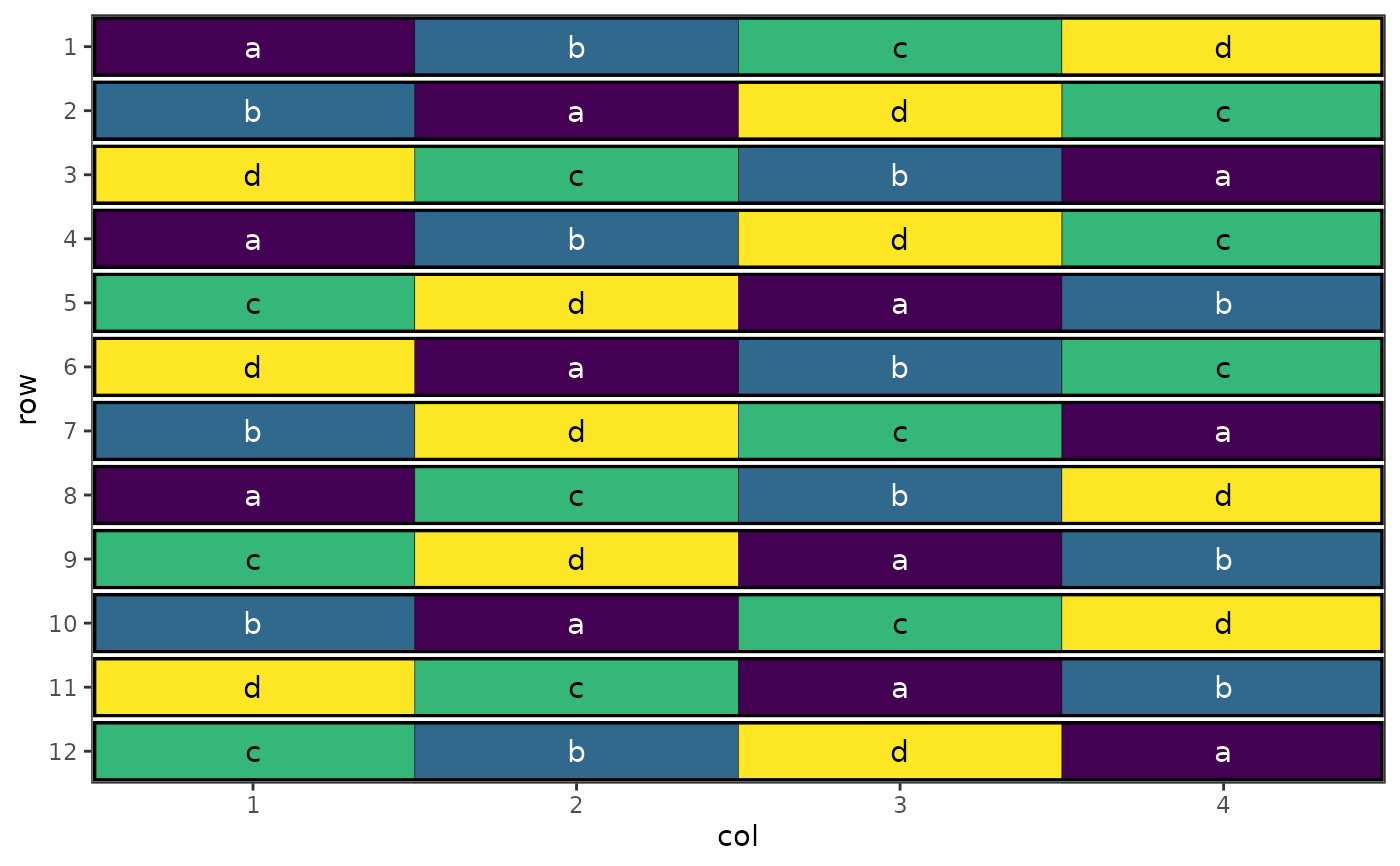

# Plot subplot allocations within wholeplots
autoplot(result, treatments = "subplot_treatment", block = "wholeplot")


# Using optimise parameter
# Multi-Environment Trial (MET) design
# With 7 replicates of 100 lines in this design, each line will appear
# twice at two different sites and once at the rest of the sites.
lines <- rep(1:100, 7)
df_site <- initialise_design_df(1, 28, 5, 14, 5)
df_initial <- rbind(df_site, df_site, df_site, df_site, df_site)
df_initial$lines <- lines
df_initial$site <- rep(c("a", "b", "c", "d", "e"), each = 140)

df_initial$site_row <- paste(df_initial$site, df_initial$row, sep = "_")
df_initial$site_col <- paste(df_initial$site, df_initial$col, sep = "_")
df_initial$site_block <- paste(df_initial$site, df_initial$block, sep = "_")

# Low iterations keeps the example quick; raise it for a real design.
optimise <- list(
  connectivity = list(
    spatial_factors = ~site,
    iterations = 500,
    early_stop_iterations = 100
  ),
  balance = list(
    swap_within = "site",
    spatial_factors = ~ site_col + site_block,
    iterations = 500,
    early_stop_iterations = 100
  )
)

result <- speed(
  data = df_initial,
  swap = "lines",
  optimise = optimise,
  optimise_params = optim_params(random_initialisation = TRUE, adj_weight = 0),
  seed = 112,
  quiet = TRUE
)

head(table(result$design_df$lines, result$design_df$site))
#>
#>     a b c d e
#>   1 4 0 0 3 0
#>   2 2 0 2 3 0
#>   3 1 2 1 1 2
#>   4 0 1 1 3 2
#>   5 2 1 1 2 1
#>   6 0 1 3 0 3

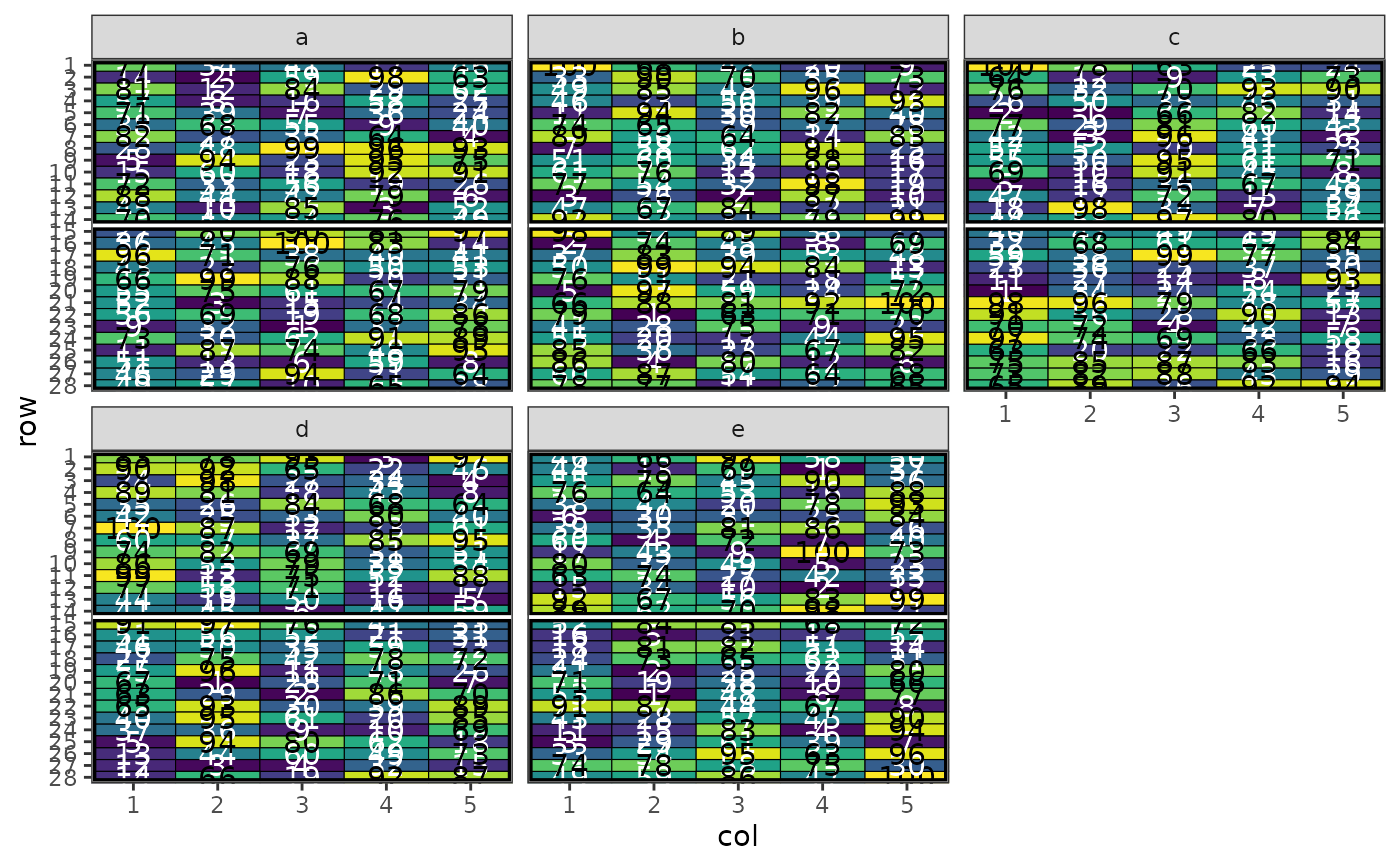

# Plot the MET design with facets
autoplot(result, treatments = "lines") +
ggplot2::facet_wrap(~site)
