Add buffers to an existing design

Usage

add_buffers(design_obj, type, by = NULL)

Arguments

design_obj: A design object (with class "design") from the design() function
type: The type of buffer to add. One of 'edge', 'row', 'column', 'double row', 'double column', 'blocks', or 'double block'/'entire block'/'full block'.
by: The name of a grouping column. Used by the block-based buffer types ("block" and the "double block" family), and optionally by "row"/ "column" to insert a buffer only where the group changes between adjacent rows/columns (e.g. between wholeplots in a split-plot design). Defaults to "block" when the design has a "block" column, otherwise NULL.

Value

The modified design object with buffers added

Examples

# Create a simple CRD design
des <- design(type = "crd", treatments = c("A", "B"), reps = 3, nrows = 2, ncols = 3, seed = 42)
#> Source of Variation                     df
#> =============================================
#> treatments                              1
#> Residual                                4
#> =============================================
#> Total                                   5

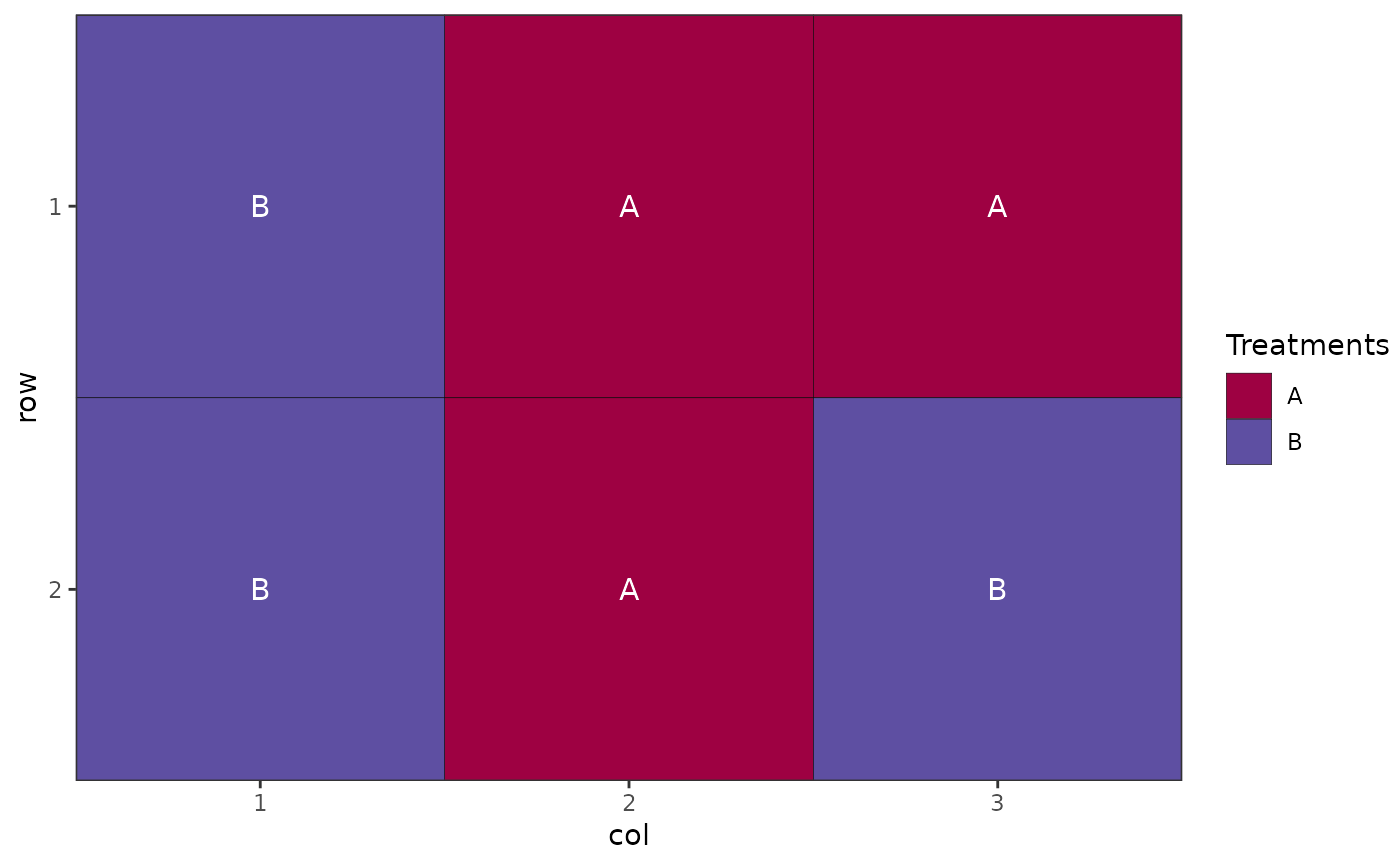

# Plot the original design
autoplot(des)

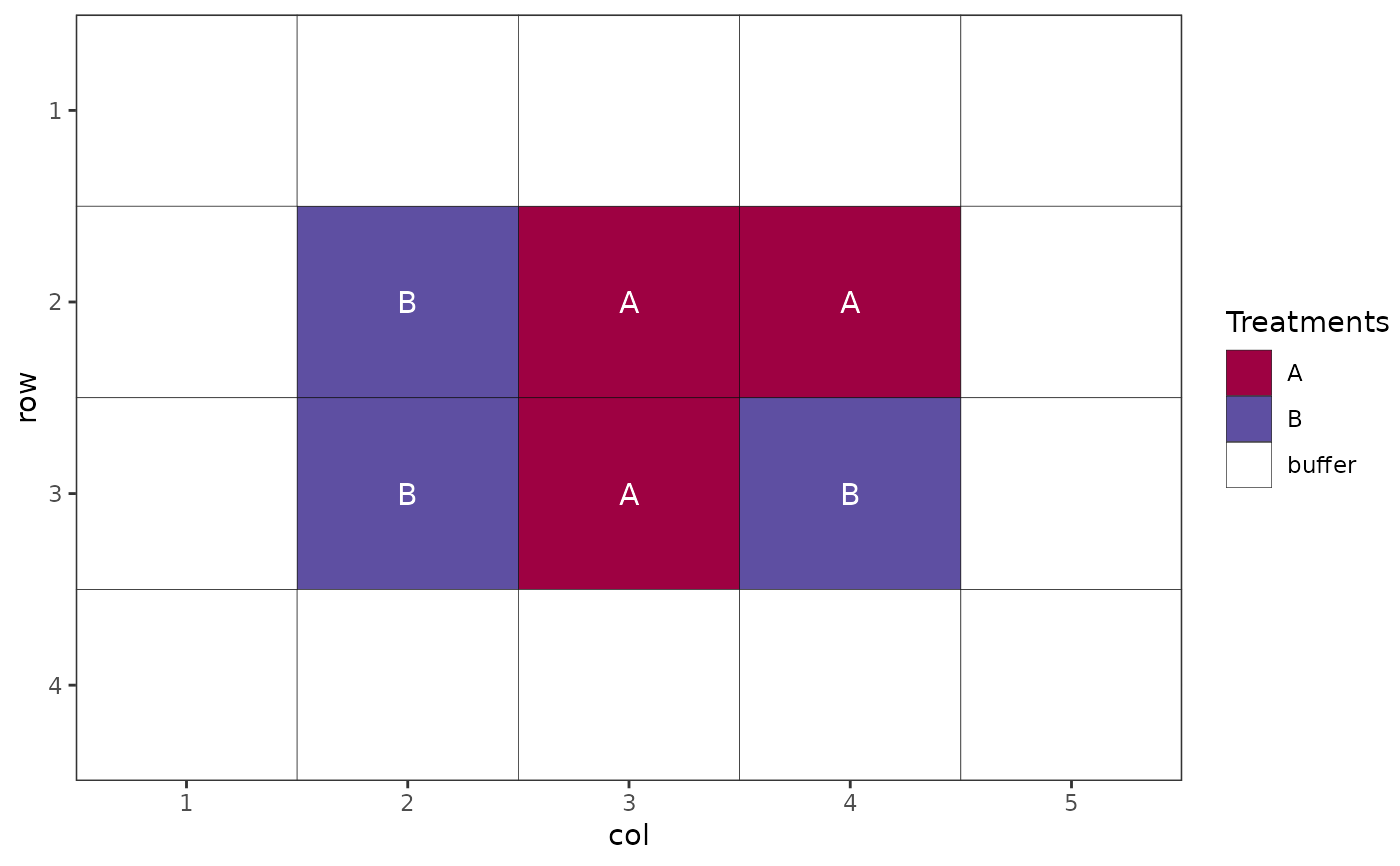

# Add edge buffers (a border around the whole field) and plot
autoplot(add_buffers(des, type = "edge"))

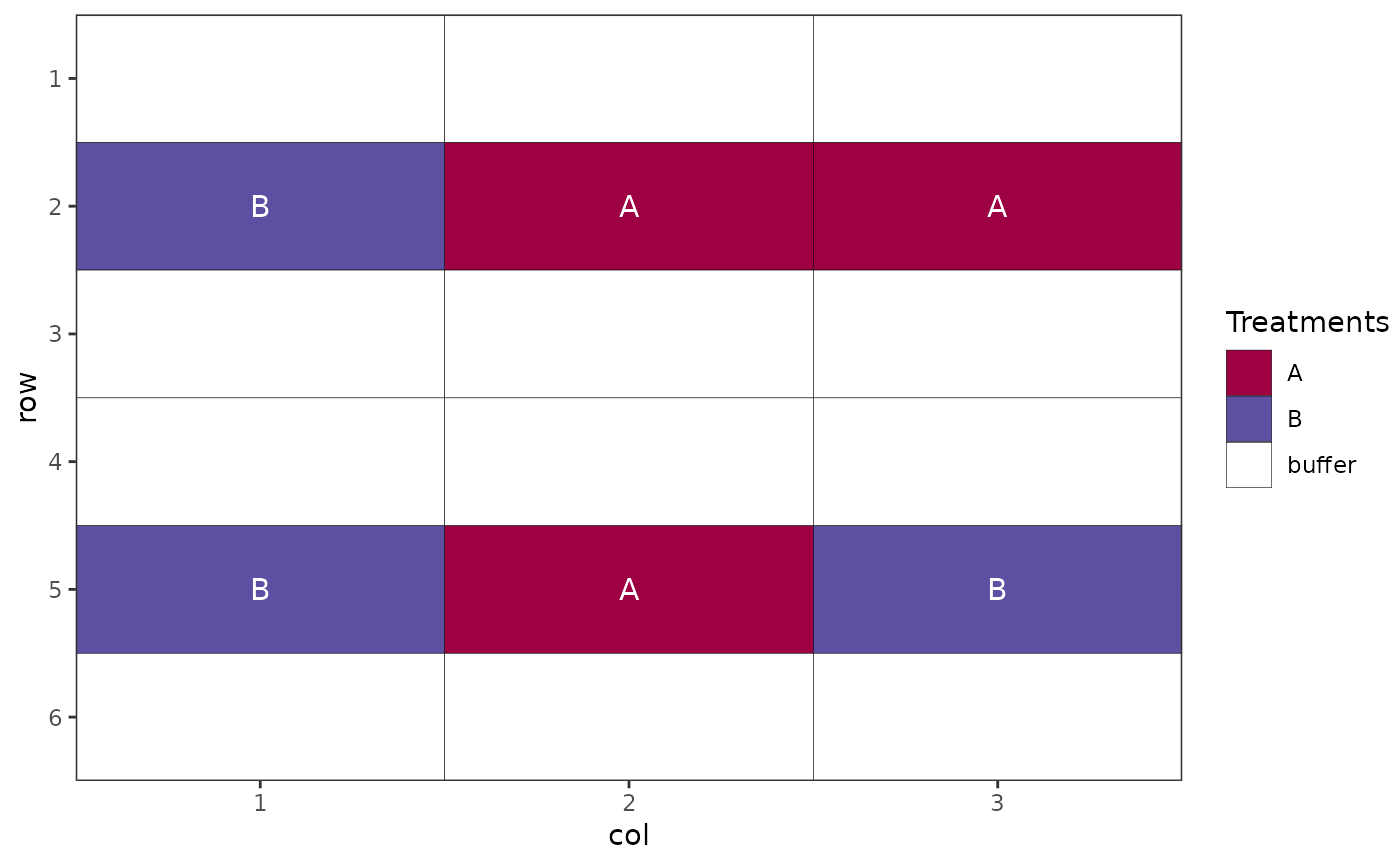

# A buffer row between every pair of rows
autoplot(add_buffers(des, type = "row"))

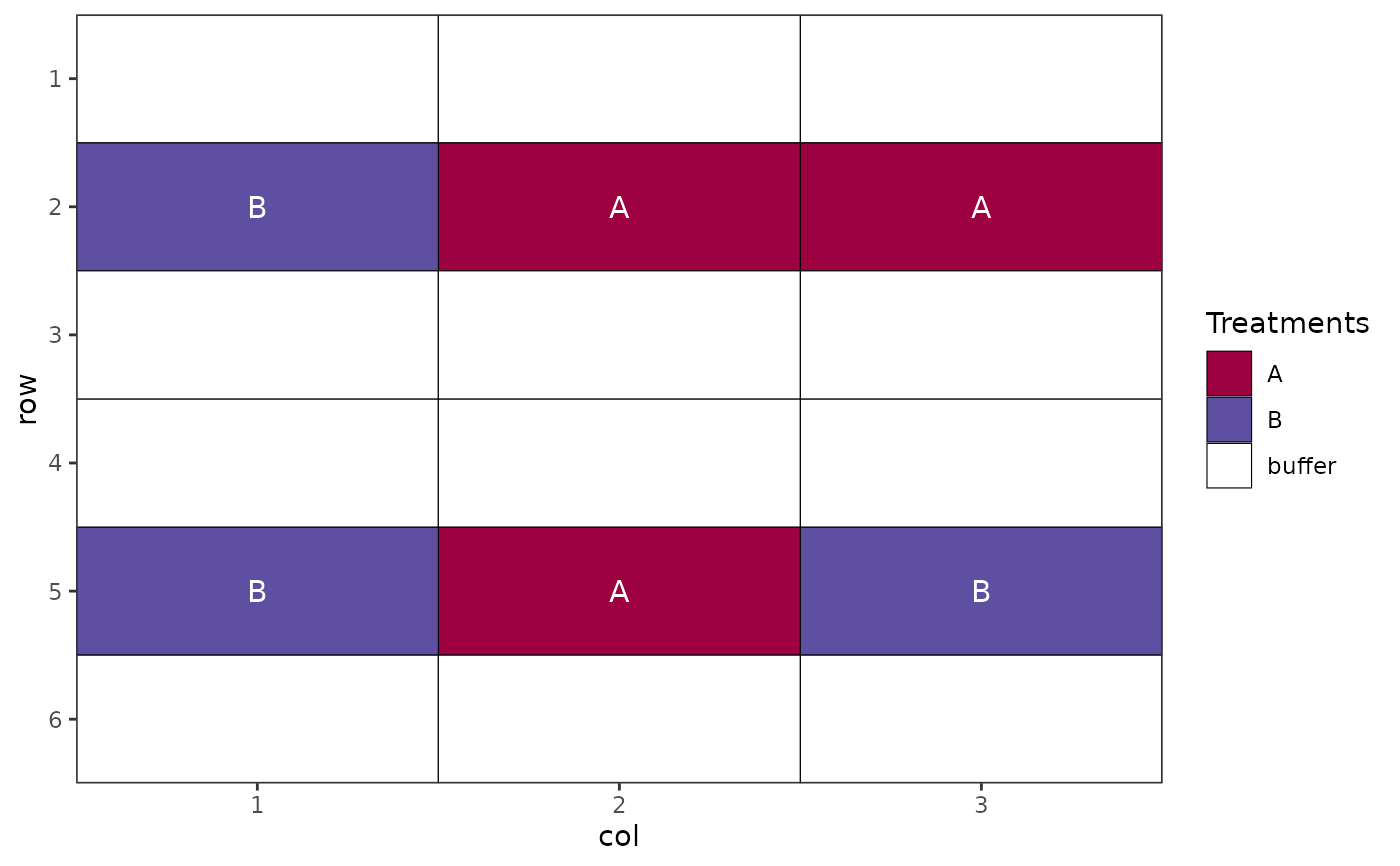

# Two buffer rows between every pair of rows
autoplot(add_buffers(des, type = "double row"))

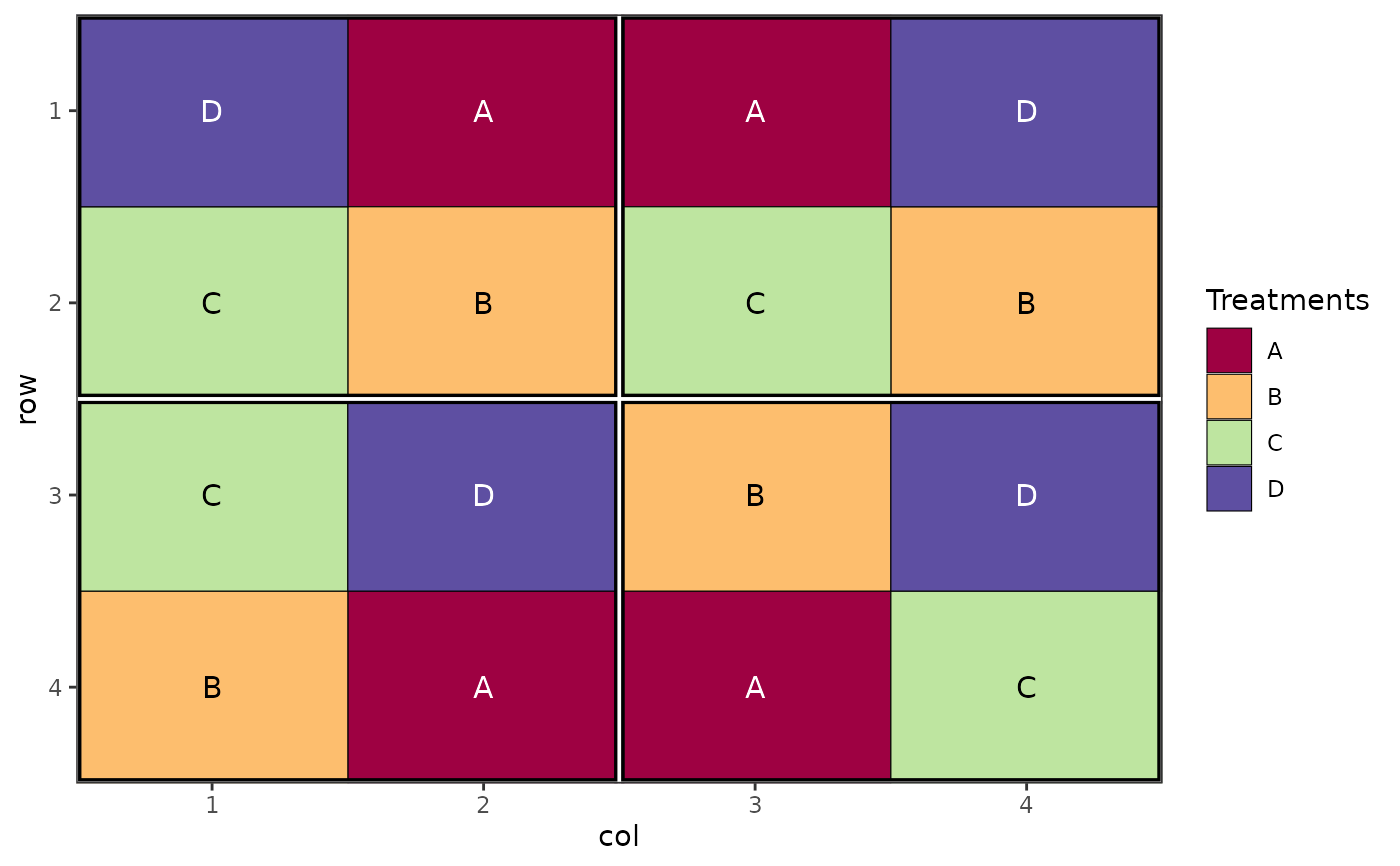

# For block designs, buffer the boundaries between blocks
des_rcbd <- design(type = "rcbd", treatments = LETTERS[1:4], reps = 4,
                   nrows = 4, ncols = 4, brows = 2, bcols = 2, seed = 42)
#> Source of Variation                     df
#> =============================================
#> Block stratum                           3
#> ---------------------------------------------
#> treatments                              3
#> Residual                                9
#> =============================================
#> Total                                   15

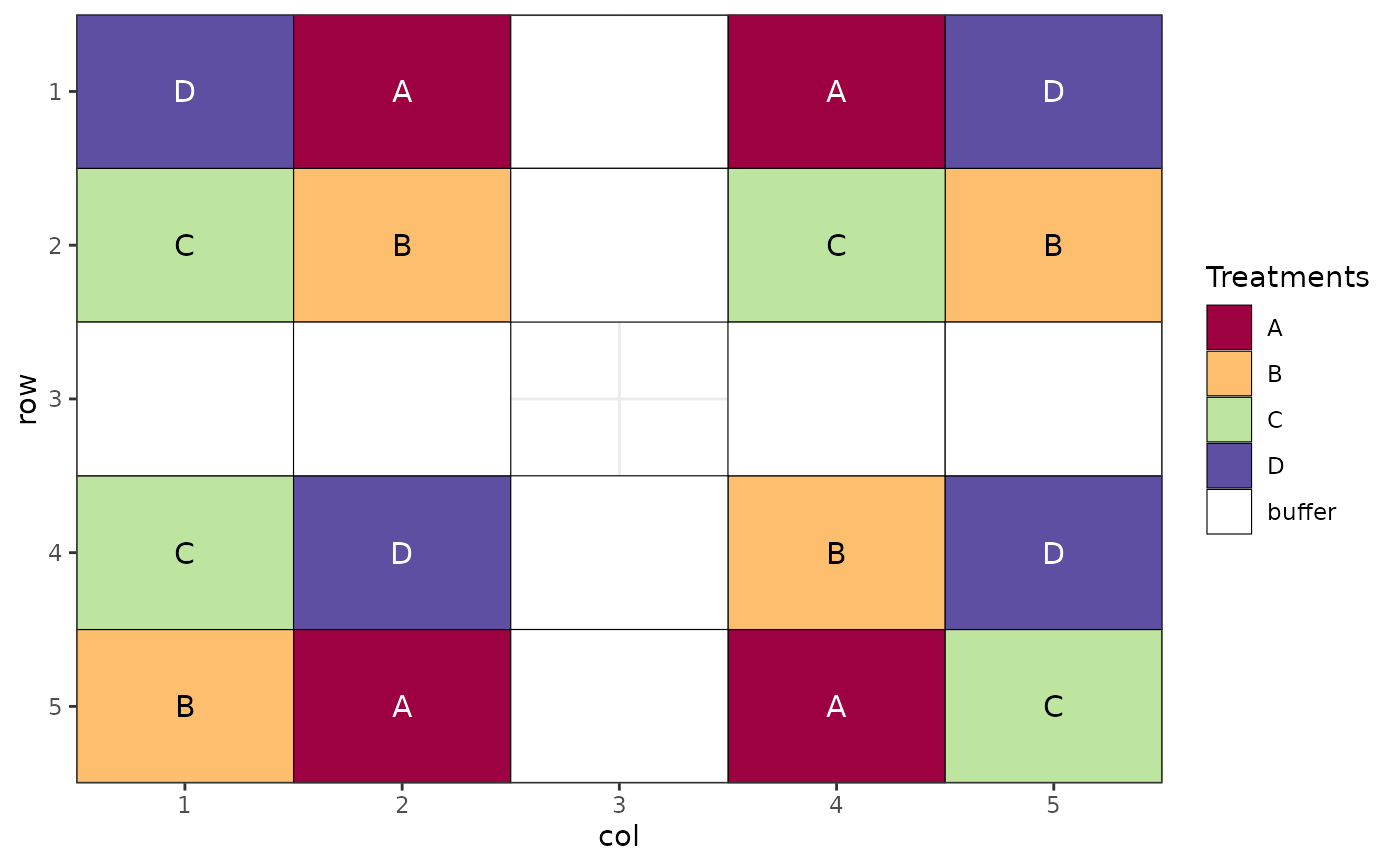

# One buffer at each internal block boundary
autoplot(add_buffers(des_rcbd, type = "block"))

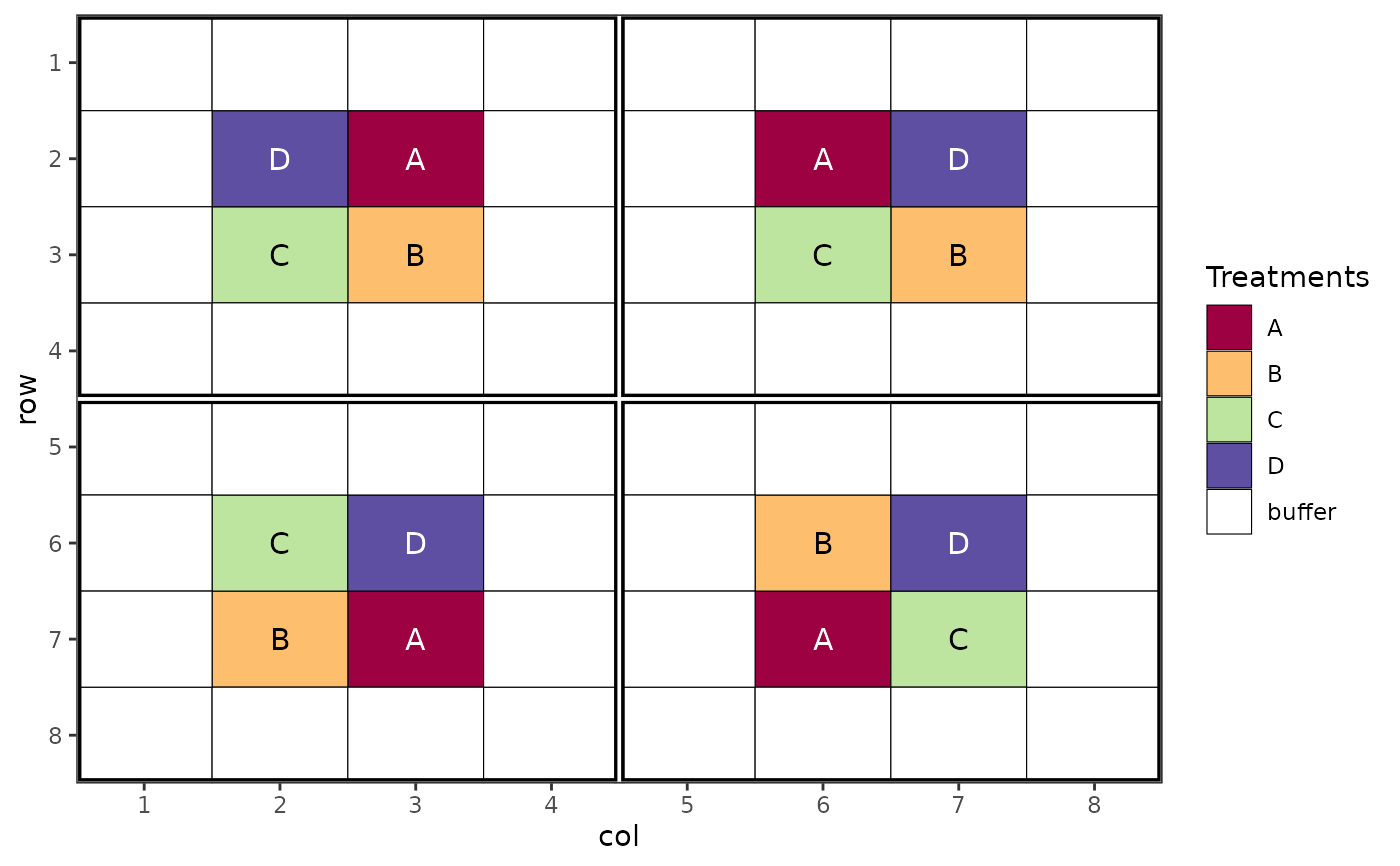

# A full buffer ring surrounding each block
autoplot(add_buffers(des_rcbd, type = "double block"))

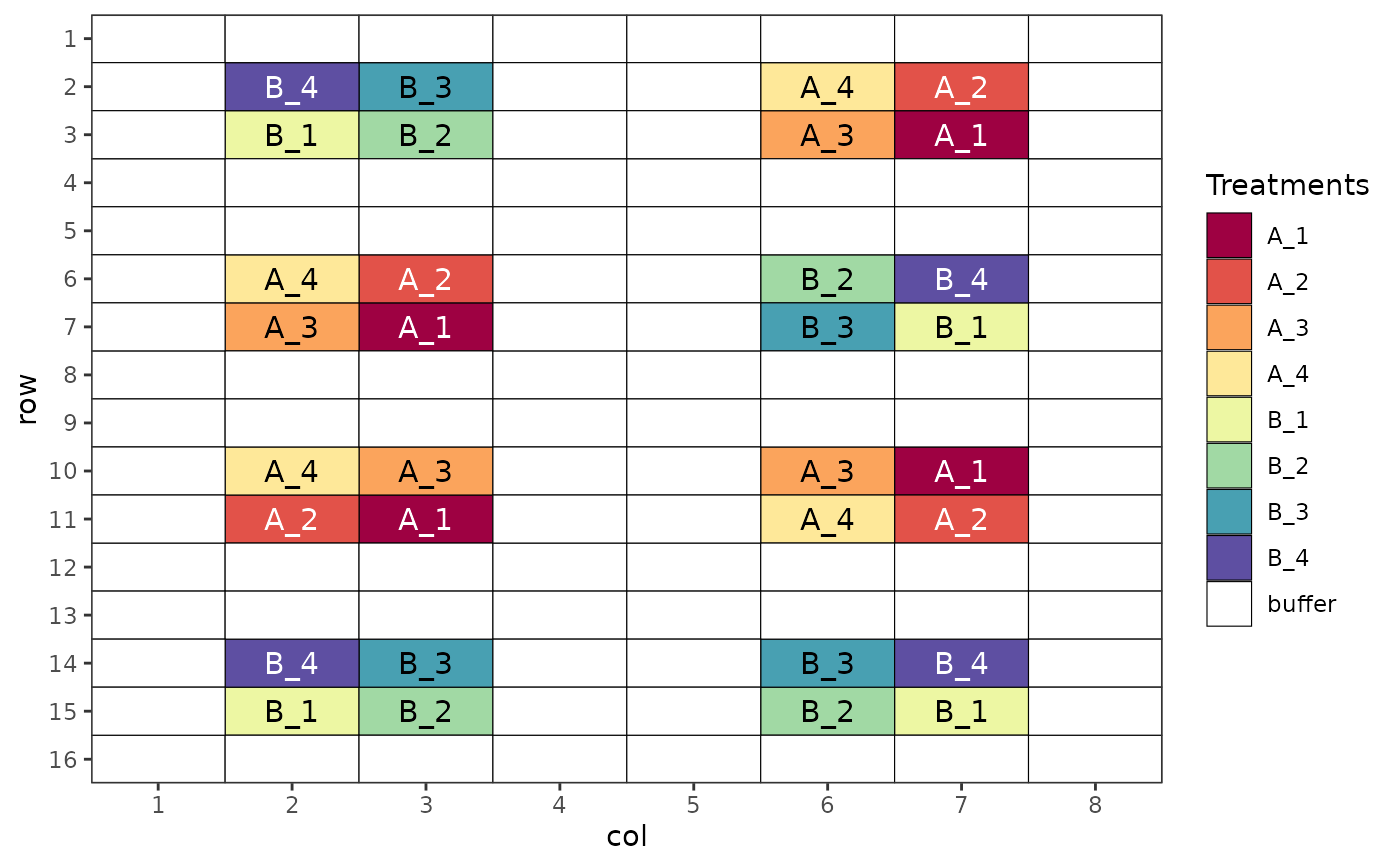

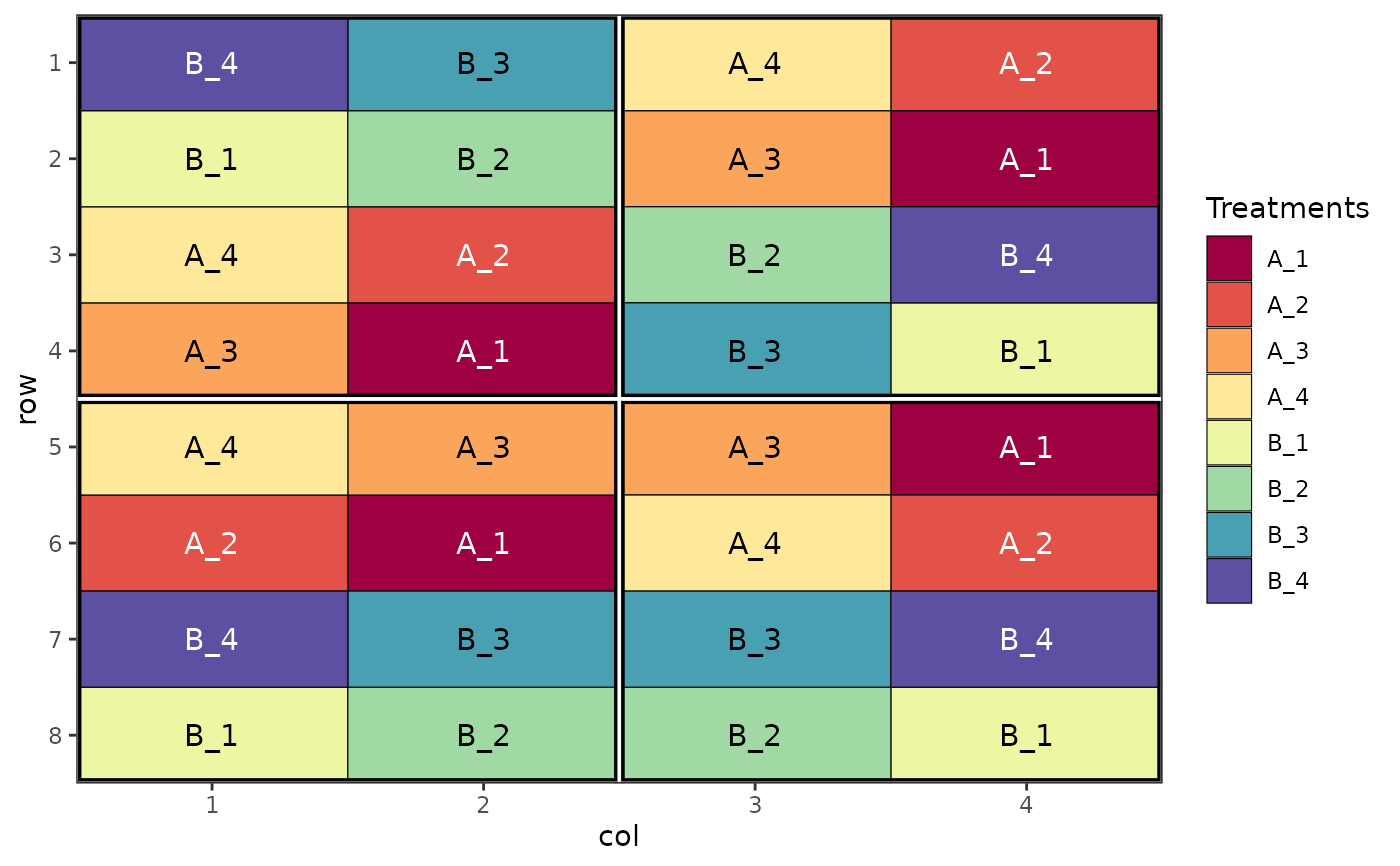

# Use `by` to buffer where a grouping column changes. In a split-plot the
# `plots` column identifies each wholeplot, so this rings every wholeplot:
des_sp <- design(type = "split", treatments = c("A", "B"), sub_treatments = 1:4,
                 reps = 4, nrows = 8, ncols = 4, brows = 4, bcols = 2, seed = 42)
#> Source of Variation                          df
#> ==================================================
#> Block stratum                                3
#> --------------------------------------------------
#> Whole plot stratum
#>          treatments                          1
#> Whole plot Residual                          3
#> ==================================================
#> Subplot stratum
#>          sub_treatments                      3
#>          treatments:sub_treatments           3
#>          Subplot Residual                   18
#> ==================================================
#> Total                                       31

autoplot(add_buffers(des_sp, type = "double block", by = "plots"))

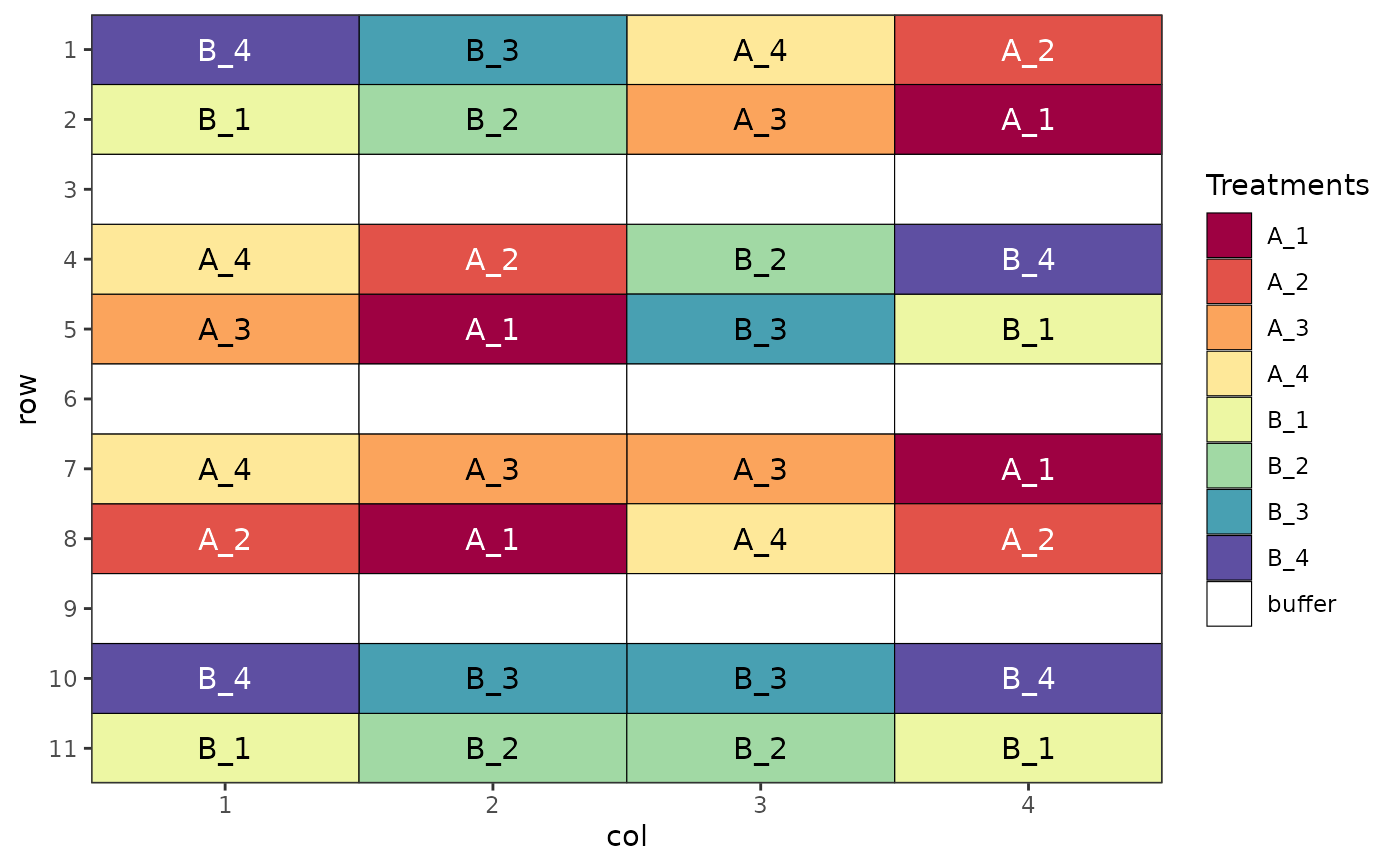

# ... or just a buffer row between the wholeplot bands
autoplot(add_buffers(des_sp, type = "row", by = "plots"))
